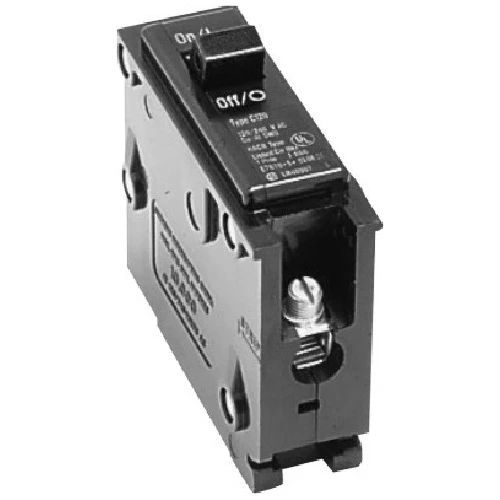

120/240 VAC 30 A BR Circuit Breaker 1 Pole Plug-In

BR type circuit breaker with voltage rating of 120/240 VAC and current rating of 30 A. Has 1 pole. Plug-In styled mounting, has a interrupting current rating of 10,000 A. Wire size range is #14 – 4. Eaton type BR plug-in breakers in the standard 1-inch per pole moulded case and can be used as main and/or branch disconnect devices. All are CSA and UL listed. Typical ampacity range for BR breakers is 15 through 125 A. For sub feed applications in 200 or 400 A load centers requiring a 125, 150, 175, or 200 A sub feed circuit breaker a type BJ circuit breaker can be used. Refer to page 62 for product space requirements and selection.

• Cutler-Hammer series, Type BR
• Use for short circuit and overload protection
• Breaker trips to the center position, if tripped, turn OFF then back on to reset
• Requires 1-in space
• Interrupt rating is 10 kAIC
• Switch duty rated
• BR 1 pole circuit breakers carry listing for HACR applications
• Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, and surge protection breakers
