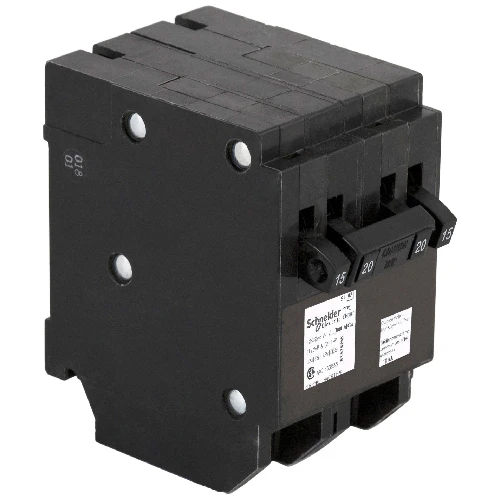

15/15A/1P – 20A/2P CHOM QUAD Circuit Breaker

HomeLine breakers feature Qwik-Open circuit breakers, which give homeowners a new standard for reliable, fast acting circuit protection. Tandem and quad space saver circuit breakers are ideal for adding additional circuits to an existing HomeLine panel with limited space. Adding tandem or quad breakers double the number of circuits in a panel, as they only require 2 spaces in the panel. Provides overload and short circuit protection (120/240Vac). Inner Circuit: 1 – Double Pole 20A breaker / Outer Circuits: 2 – Single Pole 15A breakers. Accepts Al/Cu conductors, Lug Range #14-#8. 10,000 Amperes Interrupting Rating (AIR). CSA approved to only install in Canadian HomeLine Loadcentres

• Provides overload and short circuit protection (120/240Vac)
• Inner circuit: 1 – double pole 20 Amp breaker, outer circuits: 2 – single pole 15 Amp breakers
• Accepts aluminum/copper conductors, lug range #14-#8
• 10,000 A interrupting rating (AIR)
• CSA listed for HACR (heating, air-conditioning and refrigeration equipment)
• CSA approved to only install in Canadian HomeLine loadcentres
