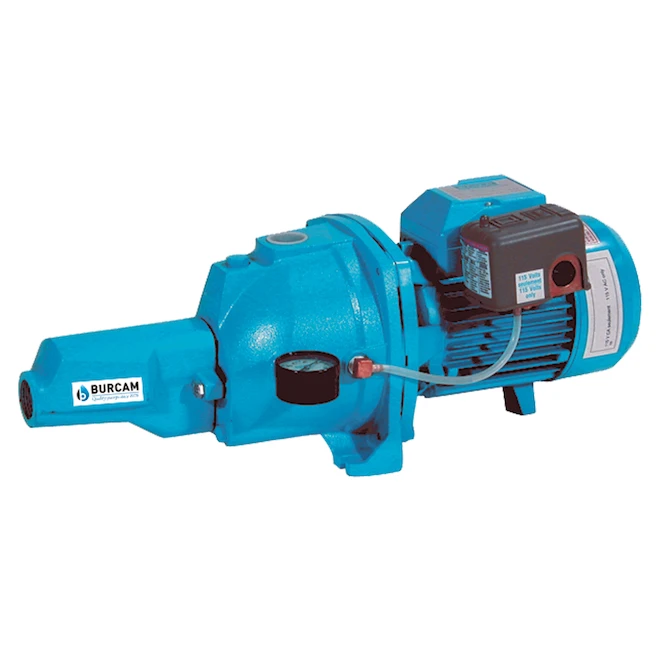

Burcam 1/2-HP Blue Cast Iron Jet Pump – 115/230 V, 2406 à 3040 Lph

The Burcam 506321 cast iron convertible jet pump is designed for use in conjunction with a captive air pressure tank to deliver potable water with a maximum vertical lift of 70 feet to the home, cottage or farm. This pump can be used either in a shallow well application with a maximum vertical lift of 25 feet, or in a deep well application (with the ejector in the well) for a maximum lift of 70 feet. The 0.5 HP, dual voltage 115/230 V, enclosed fan-cooled motor, bearing to bearing, is equipped with automatic thermal and overload protection and a full-time run capacitor. The large cast iron body is easy to prime. The pump can deliver a maximum pressure of 65 PSI, but comes assembled with a 30/50 PSI pressure switch. The pump also includes a 0-100 PSI pressure gauge. The capacity is up to 3040 Lph (shallow well application) and 2406 Lph (deep well application).

• Bearing to bearing stainless steel motor shaft and stainless steel mechanical seal
• Large, easy-to-prime cast iron body
• Ideal for a deep well application with a maximum vertical suction lift of 21 m
• 115/230V dual voltage totally enclosed fan-cooled motor with automatic thermal and overload protection and full time run capacitor
