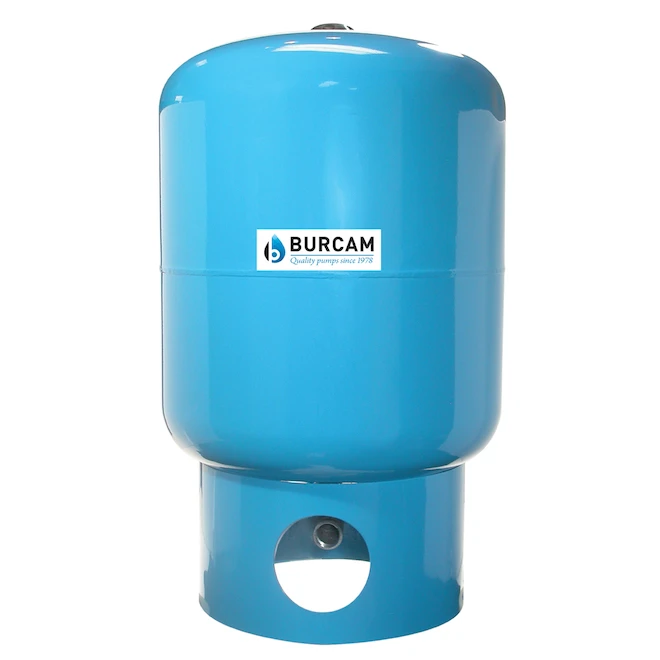

The Burcam 16 US gallons vertical captive air pressure tank is designed for residential water systems assembled with a jet pump or a deep well submersible pump. The tank has a tough, epoxy-baked steel finish and stainless steel flange with a 1″ NPT connection. The replaceable bladder is made of synthetic butyl rubber to increase reliability and life span. There is no water-to-metal contact for rust-free operation. The maximum working pressure is 100 PSI. The tank is factory pre-charged at 28 PSI. For use with a 20/40 PSI pressure switch, the air pressure in the empty tank must be adjusted to 18 PSI; for a 30/50 PSI switch, the pressure must be adjusted to 28 PSI. The drawdown is 5.0 US gal for a 20/40 PSI switch setting and 4.0 US gal for a 30/50 PSI switch setting.
- Designed for water systems assembled with a jet pump or a deep well submersible pump
- No water to metal contact; rust-free operation
- Flange made of stainless steel
- Replaceable bladder made of synthetic butyl rubber
| Drawdown Gallons @ 30-50 PSI | 4 |
|---|---|
| Recommended Size (# of Faucets/Showers) | 8-11 |
| Volts | N/A |
| Thread Size(mm) | 25.4 |
| Thread Size(in) | 1 |
| Thread Size(cm) | 2.54 |
| Tank Type | Vertical |
| Tank Discharge Size(mm) | 25.4 |
| Tank Discharge Size(in) | 1 |
| Tank Discharge Size(cm) | 2.54 |
| Tank Capacity(l) | 60.5664 |
| Tank Capacity(gal) | 16 |
| Pressure Relief Valve | No |
| Weight (When Empty)(lbs.) | 28 |
| Material | Carbon steel |
| Height(mm) | 660.4 |
| Height(in) | 26 |
| Height(cm) | 66.04 |
| Drawdown Gallons @ 40-60 PSI | 3.2 |
| Drawdown Gallons @ 20-40 PSI | 5 |
| Diameter(mm) | 457.2 |
| Diameter(in) | 18 |
| Diameter(cm) | 45.72 |
| Color/Finish Family | Blue |
| Weight (When Empty)(kg) | 12.7008 |
| Warranty | 2-year |
