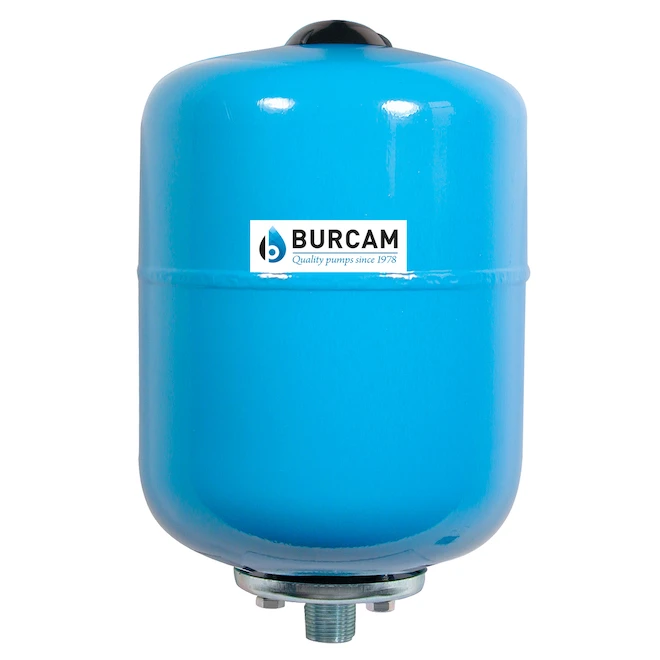

The Burcam 600542B 5 US gal (20L) inline captive air pressure tank is designed for water systems assembled with a jet pump. It has a tough epoxy-baked finish for durability and a replaceable bladder made of synthetic butyl rubber to increase reliability and life span. There is no water to metal contact for rust-free operation. The tank has a stainless-steel flange with a 1-inch NPT connection. It supports a 100 PSI maximum working pressure. For use with a 20/40 PSI pressure switch, the air pressure must be adjusted to 18 PSI; for a 30/50 PSI switch, the pressure must be adjusted to 28 PSI. Drawdown 1.6 US gal (20/40 PSI); 1.3 US gal (30/50 PSI).
- Designed for water systems assembled with a jet pump
- No water to metal contact; rust-free operation
- Flange made of stainless steel
- Bladder made of synthetic butyl rubber
| Drawdown Gallons @ 30-50 PSI | 1.3 |
|---|---|
| Recommended Size (# of Faucets/Showers) | 2-4 |
| Weight (When Empty)(lbs.) | 7.9 |
| Thread Size(mm) | 25.4 |
| Thread Size(in) | 1 |
| Thread Size(cm) | 2.54 |
| Tank Type | Expansion |
| Tank Discharge Size(mm) | 25.4 |
| Tank Discharge Size(in) | 1 |
| Tank Discharge Size(cm) | 2.54 |
| Tank Capacity(l) | 18.927 |
| Tank Capacity(gal) | 5 |
| Pressure Relief Valve | No |
| Weight (When Empty)(kg) | 3.58344 |
| Material | Carbon steel |
| Height(mm) | 406.4 |
| Height(in) | 16 |
| Height(cm) | 40.64 |
| Drawdown Gallons @ 40-60 PSI | 1.1 |
| Drawdown Gallons @ 20-40 PSI | 1.6 |
| Diameter(mm) | 260.35 |
| Diameter(in) | 10.25 |
| Diameter(cm) | 26.035 |
| Color/Finish Family | Blue |
| Warranty | 2-year |
| Volts | N/A |
