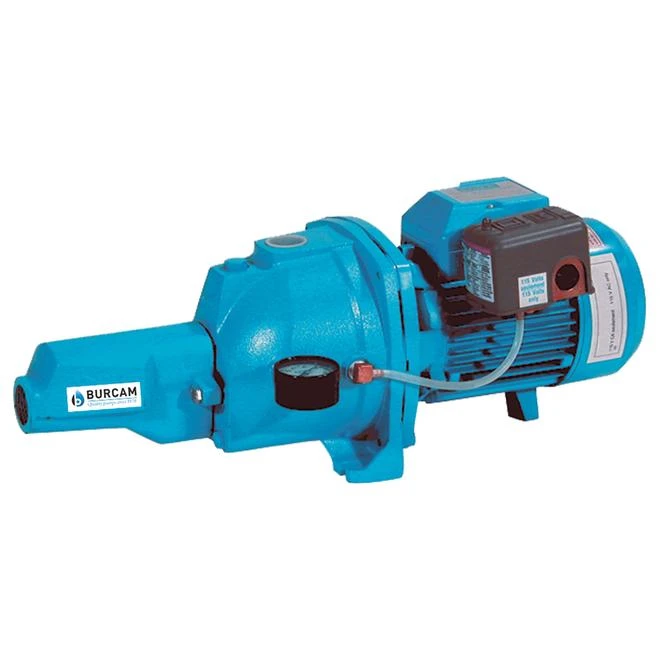

This Burcam cast iron convertible jet pump is designed for use in combination with a captive air pressure tank to deliver potable water to your home, cottage or farm. This pump can be used either in a shallow well application with a maximum vertical suction lift of 25 feet, or in a deep well application (with the ejector in the well) for a maximum vertical suction lift of 70 feet. Its 3/4 HP, dual voltage 115/230V, totally enclosed fan-cooled motor is equipped with automatic thermal and overload protection and a full-time run capacitor. The pump can deliver a maximum pressure of 65 PSI but comes assembled with a 30/50 PSI pressure switch. It has a capacity of up to 820 US GPH (shallow well application) or 685 US GPH (deep well application).
- Ideal for a deep well application with a maximum vertical suction lift of 70 feet
- Large, easy-to-prime cast iron body
- 115/230V dual voltage totally enclosed fan-cooled motor with automatic thermal and overload protection and full time run capacitor
- Bearing to bearing stainless steel motor shaft and stainless steel mechanical seal
| Material | Cast iron |
|---|---|
| Cord Length(cm) | 0.0 |
| Application | For use in the home , cottage or farm, in conjunction with a pressure tank , to pump water from a potable water source such as a well, lake, cistern or pond where the vertical suction lift is less than 70 feet |
| Base Warranty Labor(Months) | 24 |
| Base Warranty Parts(Months) | 24 |
| Battery Backup | No |
| Battery Voltage | N/A |
| Collection Name | N/A |
| Cord Length(ft) | 0 |
| Alarm Included | No |
| File/Certification Number | LR061751 |
| Gallons per Minute(gal) | 13.67 |
| Gallons per Minute(l) | 51.746418 |
| Horsepower (HP) | 0.75 HP |
| Impeller Material | Thermoplastic |
| Inlet Connection | NPT |
| Amperage | 9 |
| Vertical Lift | 70 ft |
| Maximum PSI | 65 |
| Sub Type | Convertible jet well pump |
| Outlet Connection | NPT |
| Outlet Diameter | 1 inch |
| Package Contents | Convertible jet pump and ejector with pressure switch and pressure gauge |
| Package Quantity | 1 |
| Power Source | Electric |
| Safety Listing | cCSAus safety listing |
| Submersible | No |
| Pump Horsepower | 3/4-HP |
| Switch Type | Specialty |
| Type | Water pump |
| Volts | 115 and 230 |
| Warranty | 2-year |
| Water Flow(GPM) | 13.67 |
| Check Valve | No |
| Inlet Diameter | 1 inch |
