Sale!
Original price was: $99.00.$69.30Current price is: $69.30.
- Experience the Best Quality
- Your happiness, our mission.
- Shop with Peace of Mind
- Quality You Can Trust

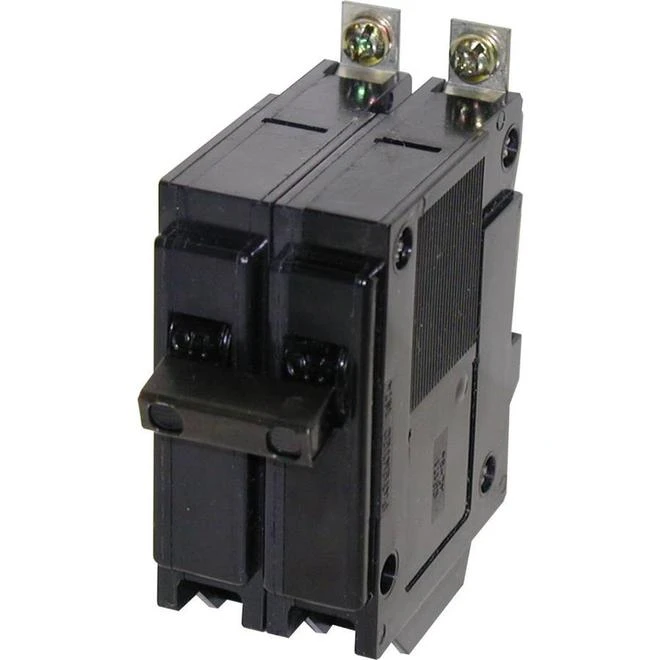

This QBH-type circuit breaker features a voltage rating of 120/240 VAC, a current rating of 50 A and 2 poles. Bolt-on styled mounting, it has 10,000 A interrupting current rating. The wire size range is #10 – 2 CU, #10 – 1 AL. This product is suitable for load centers, lighting and distribution panelboards, and meter centers. Designed to fit the classic CEB, Sylvania or Commander Electric design bolt-on load centers, it comprises an internal common trip mechanism. Each breaker is electronically calibrated for 40°C. Compression moulded housing and handle for durability and service.
- QBH type bolt-on breakers fit panels manufactured by C.E.B., Sylvania and Commander (B/BC)
- Protects: 1 x 2 pole 50Amp
| Width Measurement | 1-1/2-in |
|---|---|
| Number of Poles | 2 |
| Surge Protection | No |
| Series Name | Type QBH |
| Series | Type QBH |
| Power Capacity | 50-amp |
| Plug-On Neutral | No |
| Phase | Single phase (120/240) |
| Interrupting Amp Listing(Amps) | 10000 |
| UL Safety Listing | Yes |
| Ground Fault Protection | No self test |
| ETL Safety Listing | No |
| CSA Safety Listing | Yes |
| Circuit Breaker Voltage | 240 |
| Circuit Breaker Type | Standard trip |
| Circuit Breaker Size | 1.5"wide |
| Amps(Amps) | 50 |
| Type | Standard trip |
