Name: Homeline 125 Amp HomeLine Sub Panel Loadcentre With 8 Spaces, 16 Circuits Maximum
SKU: CM9UY 02655097
Availability: InStock

Sale!

Homeline 125 Amp HomeLine Sub Panel Loadcentre With 8 Spaces, 16 Circuits Maximum

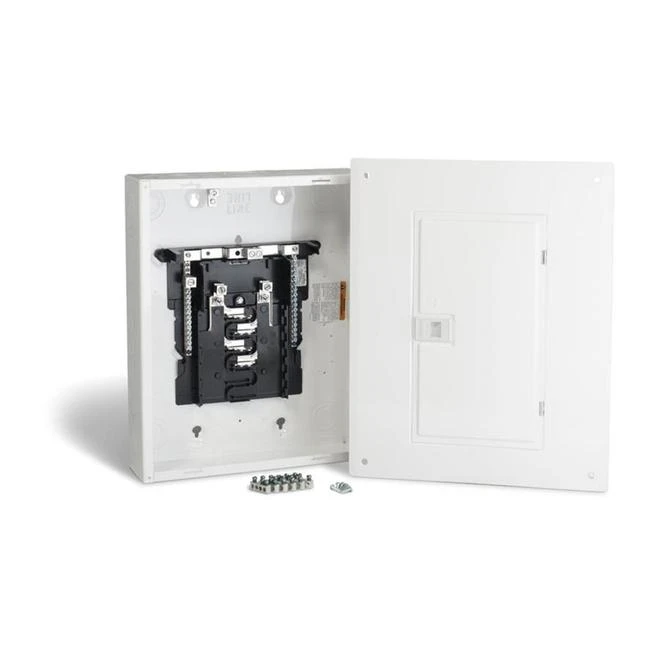

Homeline 125 Amp HomeLine Sub Panel Loadcentre With 8 Spaces, 16 Circuits Maximum - Image 2

Original price was: $157.00.Current price is: $97.99.

SKU: CM9UY 02655097 Categories: Breaker Panels, Breakers and Fuses, Electrical Tag: HOMELINE

Experience the Best Quality
Your happiness, our mission.
Shop with Peace of Mind
Quality You Can Trust

This electrical panel by Homeline® features a 125 A current rating and 16 circuits. This sub panel is ideal if your main service panel is full or if you want additional circuits. This product features a shielded bus and interior assembly for a secure use. CSA approved for vertical, horizontal or inverted mounting. Limited ten-year warranty.

1 Phase, 3 wire, 120/240VAC
8 Spaces, expandable to 16 circuits maximum with the use of HomeLine tandem or quad breakers
Type 1 indoor enclosure with combination flush/surface trim to meet all mounting situations
CSA approved for vertical, horizontal or inverted mounting
Distributed branch neutral reduces clutter and simplifies wiring
Main wire size – AWG/kc mil Al/Cu: #6-2/0
CSA approved to only accept Canadian HomeLine circuit breakers
Suitable for aluminum or copper conductors

Width(mm)	361.95
Manufacturer Color/Finish	White
Width(cm)	36.195
Value Pack Contents	Not apply
Value Pack	No
Use Location	Indoor
Series Name	N/A
Plug-On Neutral	Yes
Phase Type	Single phase (120/240)
Paintable	Yes
Orientation	Over/Under
Number of Spaces	8
Mounting Type	Combination
Height(mm)	455.168
Amperage	125
Height(in)	17.92
Height(cm)	45.5168
Ground Bar Installed	Yes
Feed-Through Lugs	Yes
Depth(mm)	95.25
Depth(in)	3.75
Depth(cm)	9.525
Cover Included	Yes
Circuits	16
Buss Bar Construction	Aluminum
Brand/Model Compatibility	Fits most
Width(in)	14.25
