Name: Homeline 60 Amp HomeLine Main Breaker Loadcentre With 24 Circuits Maximum
SKU: CM9UY 02655096
Availability: InStock

Sale!

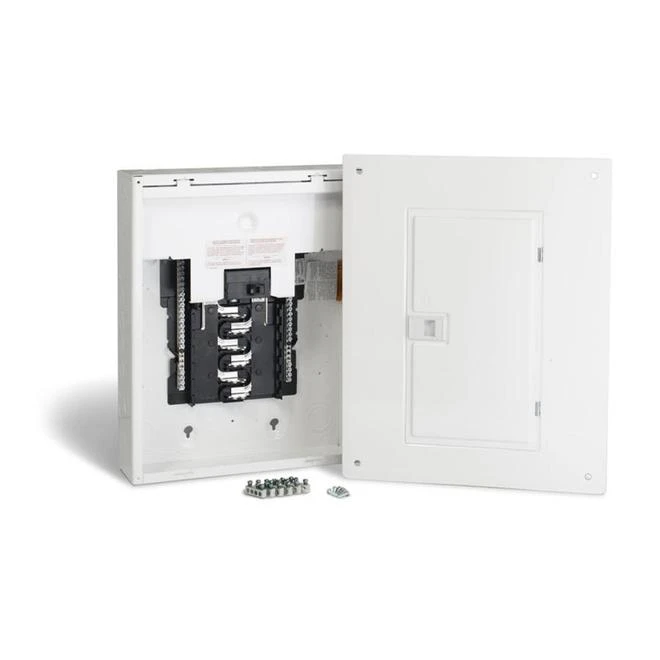

Homeline 60 Amp HomeLine Main Breaker Loadcentre With 24 Circuits Maximum

Homeline 60 Amp HomeLine Main Breaker Loadcentre With 24 Circuits Maximum - Image 2

Homeline 60 Amp HomeLine Main Breaker Loadcentre With 24 Circuits Maximum - Image 3

Homeline 60 Amp HomeLine Main Breaker Loadcentre With 24 Circuits Maximum - Image 4

Original price was: $144.00.Current price is: $95.99.

SKU: CM9UY 02655096 Categories: Breaker Panels, Breakers and Fuses, Electrical Tag: HOMELINE

Experience the Best Quality
Your happiness, our mission.
Shop with Peace of Mind
Quality You Can Trust

This electrical panel by Homeline® features a 125 A current rating and 16 circuits. It comes equipped with a factory installed circuit breaker designed to turn off power to the load centre and to prevent a short circuit. The product is ideal for surface or flush mounting. CSA approved for vertical, horizontal or inverted mounting. Limited ten-year warranty.

Factory installed 60 Amp main breaker
Suitable for surface or flush mounting
CSA approved for vertical, horizontal or inverted mounting
Tandem or quad breakers allow you to easily expand the loadcentre capacity
Suitable for aluminum or copper conductors
Main wire size – AWG/kc mil Al/Cu: #6-2/0

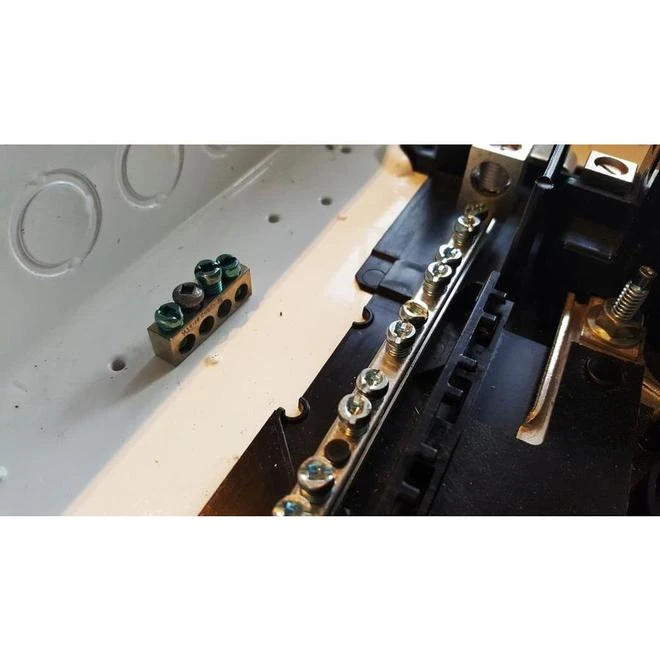

Multiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire

Amperage	60
Mounting Type	Combination
Width(in)	14.25
Width(cm)	36.195
Value Pack Contents	Not apply
Value Pack	No
Use Location	Indoor
Series Name	N/A
Plug-On Neutral	Yes
Phase Type	Single phase (120/240)
Paintable	Yes
Orientation	Over/Under
Number of Spaces	12
Manufacturer Color/Finish	White
Brand/Model Compatibility	Fits most
Height(mm)	455.168
Height(in)	17.92
Height(cm)	45.5168
Ground Bar Installed	Yes
Feed-Through Lugs	No
Depth(mm)	95.25
Depth(in)	3.75
Depth(cm)	9.525
Cover Included	Yes
Circuits	24
Buss Bar Construction	Aluminum
Width(mm)	361.95
