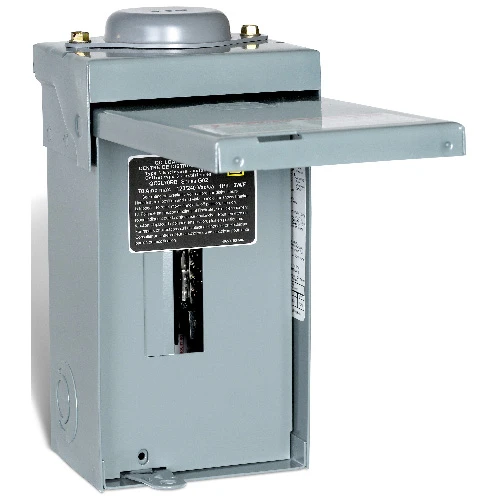

The Schneider Electric load center is a QO, main lugs type load center with voltage rating of 120/240 VAC and current rating of 70A. Features 1-phase, 3-wires, 2-spaces, 2-circuits. The short-circuit current is 10kA. Made of robust galvanized welded steel and tin plated aluminium.
- 1 Phase, 3 wire, 120/240VAC
- 2 Spaces, expandable to 4 circuits maximum with the use of QO tandem breakers
- Type 3R enclosure for outdoor applications
- Enclosures are CSA certified for vertical mounting only
- Main wire size – AWG/kc mil Al/Cu: #12-3Al/#14-4cu
- Accepts aluminum or copper conductors
- Main wire size – AWG-kc mil: #12-3Al/#14-4cu
- Expandable loadcentre capacity with the use of QO tandem breakers
| Width(mm) | 127.0 |
|---|---|
| Height(mm) | 234.95 |
| Value Pack Contents | Not apply |
| Value Pack | No |
| Use Location | Indoor |
| Series Name | QO |
| Plug-On Neutral | No |
| Phase Type | Single phase (120/240) |
| Paintable | Yes |
| Orientation | Over/Under |
| Number of Spaces | 2 |
| Mounting Type | Surface |
| Manufacturer Color/Finish | Gray |
| Height(in) | 9.25 |
| Width(in) | 5 |
| Height(cm) | 23.495 |
| Ground Bar Installed | Yes |
| Feed-Through Lugs | Yes |
| Depth(mm) | 101.6 |
| Depth(in) | 4 |
| Depth(cm) | 10.16 |
| Circuits | 4 |
| Buss Bar Construction | Aluminum and copper |
| Cover Included | Yes |
| Brand/Model Compatibility | Fits most |
| Amperage | 70 |
| Width(cm) | 12.7 |
Be the first to review “Schneider Electric Load Center – Single Phase – 70A – 120/240 VCA”
