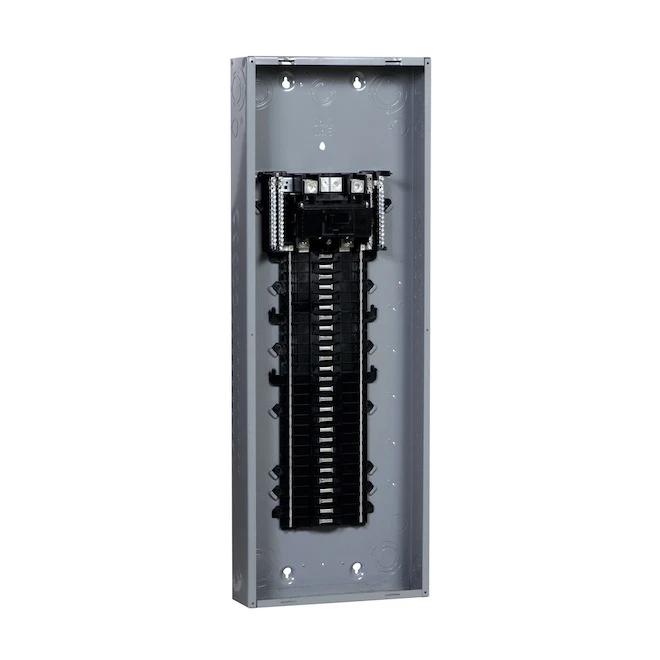

This main lug load centre by Schneider Electric are typically used as an add-on load center and is connected to the service entrance load centre when spaces for more circuits are needed or when a main disconnect is located elsewhere. It does not contain a main breaker, but main lugs only. This product is backed by a limited lifetime warranty.
- 1 Phase, 3 wire, 120/240VAC
- 12 Spaces, expandable to 24 circuits maximum with the use of QO tandem breakers
- Combination flush and surface trim to meet all mounting situations
- CSA approved for vertical, horizontal or inverted mounting
- Accepts aluminum or copper conductors
- Main wire size – AWG/kc mil aluminum/copper : #4-1

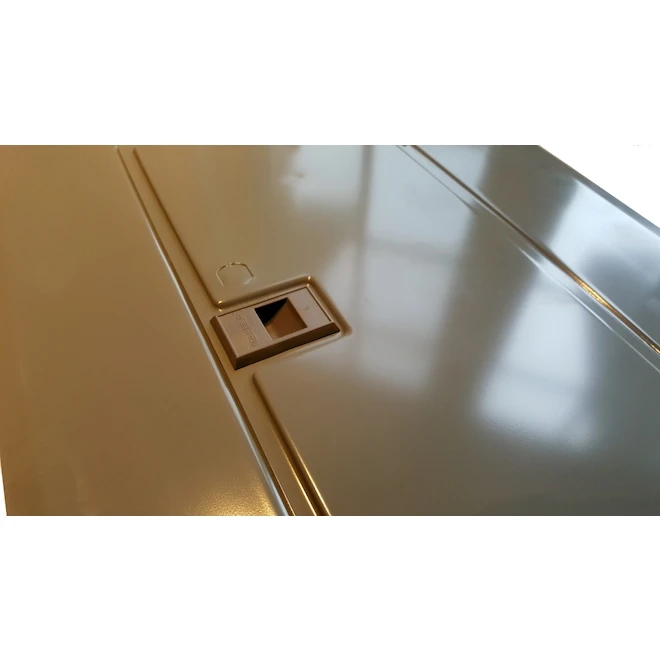

- Includes latch door on the cover
- CSA approved to only accept Canadian Square D QO circuit breakers
| Amperage | 100.0 |
|---|---|
| Orientation | Over/Under |
| Width(in) | 14.25 |
| Width(cm) | 36.195 |
| Warranty | Limited lifetime |
| Value Pack Contents | Panel, Cover |
| Value Pack | No |
| Use Location | Indoor |
| Usage | Sub-panel |
| Type | Main lug |
| Series Name | N/A |
| Safety Listing | cCSAus safety listing |
| Plug-On Neutral | No |
| Phase Type | Single phase (120/240) |
| Paintable | Yes |
| Number of Spaces | 12 |
| Brand/Model Compatibility | Fits most |
| Mounting Type | Combination |
| Manufacturer Color/Finish | Gray |
| Height(mm) | 457.2 |
| Height(in) | 18.0 |
| Height(cm) | 45.72 |
| Ground Bar Installed | Yes |
| File/Certification Number | 8537.10.39.91 |
| Feed-Through Lugs | Yes |
| Depth(mm) | 95.25 |
| Depth(in) | 3.75 |
| Depth(cm) | 9.525 |
| Cover Included | Yes |
| Circuits | 24 |
| Buss Bar Construction | Aluminum and copper |
| Width(mm) | 361.95 |
