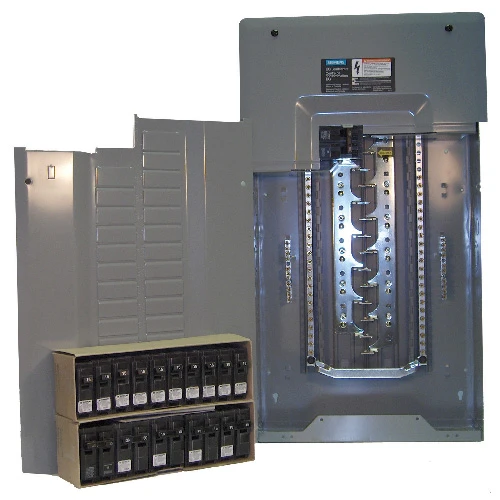

Siemens 120 – 240 V 100 A Main Breaker Load Center Aluminum / Copper

Main breaker type load center with voltage rating of 120 – 240 V and current rating of 100 A. Made up of aluminum and copper (buss bar) and has 24/48 circuits. With combination mounting type, load center measures 26 1/4 inch in height and 14.88 inch in width and 4.63 inch in depth. Complete with a factory installed 100 A main breaker. A complete line of accessories give load centers the flexibility to meet application requirements. Any combination of full and half module plug-in breakers can be added to fulfill individual needs or free up space as required.

• Orientation: Over/Under
• Indoor/Outdoor: Indoor
• All-in-One/Combination: Yes
• Main Breaker or Main Lug: Main breaker
• Ground Bar Installed: Yes
• Buss Bar Construction: Aluminum and copper
• Load Center Depth: 4.63 Inches
• Load Center Height: 26.25 Inches
• Load Center Width: 14.88 Inches
• Cover Included: Yes
• Paintable: No
• Value Pack: Yes
• Value Pack Contents: X-Press Pack: (10) Q115 breakers for lights and receptacles, (3) Q215, (1) Q230 breakers for a dryer and (1) Q240 breaker for a stove
• UL Safety Listing: No
• Amps: 100 Amps
• CSA Safety Listing: Yes
• ETL Safety Listing: No
• Complete with a factory installed 100-amp main breaker
• 24-circuits expandable to 48 (using space-saver breakers)
• Certified for mounting vertical, horizontal or inverted
• Rugged construction and reliable performance
• A complete line of accessories give loadcentres the flexibility to meet application requirements
• Any combination of full and half module plug-in breakers can be added to fulfill individual needs or free up space as required
• Voltage: 120 – 240 volt
• Circuits: 24/48
• Feed-Through Lugs: No
• Load Center Mounting Type: Combination
• Service Type: Entrance loadcentre
