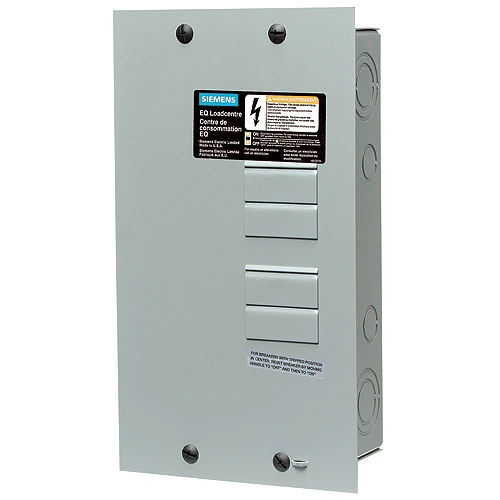

Siemens 240 VAC 100 A EQL Load Center Single Phase And 3 Wires

EQL type load center with voltage rating of 240 VAC and current rating of 100 A. Has 1 phase, 3 wires and 4/8 circuits. With Combination mounting type, load center measures 12 5/8 inch in height, 6-5/8 inch in width and 3-1/2 inch in depth. Individual circuit breakers are thermal magnetic, quick-make quick-break, trip free, plug-in construction. All two and three pole breakers are common trip.

• Service Type: Single phase main lug
• Phase Type: Single phase (120/240)
• Indoor/Outdoor: Indoor
• All-in-One/Combination: Yes
• Main Breaker or Main Lug: Main lug
• Orientation: Over/Under
• Ground Bar Installed: Yes
• Buss Bar Construction: Aluminum and copper
• Load Center Depth: 3.5 Inches
• Load Center Height: 12.625 Inches
• Load Center Width: 6.625 Inches
• Cover Included: Yes
• Paintable: No
• Value Pack: No
• UL Safety Listing: No
• Amps: 100 Amps
• CSA Safety Listing: Yes
• ETL Safety Listing: No
• Straight in wiring design helps reduce the need to bend cables and wires
• Combination slot/Robertson neutral and ground screws allows for installation flexibility, enabling simple one-tool installation and speed wiring
• Extended capacity fully distributed neutrals provides easy access, reduces installation time and simplifies wiring, 4-circuits expandable to 8 (using space-saver breakers)
• Suitable for up to 22 kA short-circuit current rating providing increased high fault current protection
• Patented INSTA-WIRE neutrals and ground bars allows for faster installation as screws are backed out, ready for wireinsertion
• Factory installed ground bars reduces installation time and cost, no need to order additional ground bar kits
• A flexible extruded plastic base pan makes breaker installation and removal quick and easy
• Concentric knockouts makes wiring easy
• Circuits: 4/8
• Gasketed hinge door with outdoor loadcentre provides easy installation and improved weatherproof protection
• Series: EQL
• Wire: 3
• Voltage: 240 VAC maximum
• Lug Data: 1
• Feed-Through Lugs: Yes
• Load Center Mounting Type: Combination
