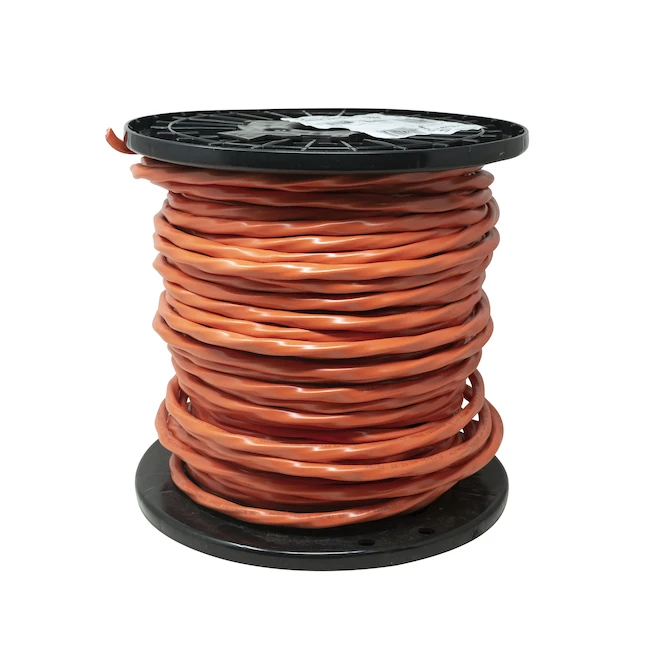

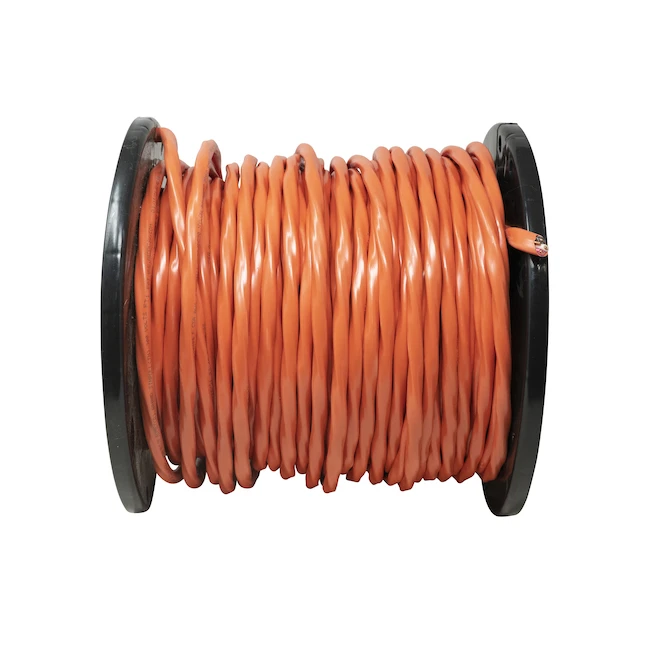

Southwire Romex Simpull Orange Jacketed NMD90 10 Gauge 3-Conductor Copper Electric Cable – 75-m Spool

This Southwire Romex SIMpull 3-conductor cable with a bare grounding conductor may be used for both exposed work in dry locations or concealed work in dry or damp locations for general residential wiring. The cable is manufactured using annealed copper conductors in a PVC/nylon insulation with a a PVC jacket for the overall construction. The conductors feature SIM technology jacket which reduces the coefficient of friction. This cable meets or exceeds ASTM, CSA C22.2 No. 48 and Canadian Electrical Code requirements and is covered by a 1-year limited warranty.

• Southwire’s Romex SIMpull NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations
• NMD90 is intended for use in Canada in accordance with the Canadian Electrical Code
• Maximum allowable conductor temperature is 90ºC and the minimum recommended installation temperature is -10ºC for 3-conductor cables( with suitable handling procedures)
• Material should be properly stored above 0ºC for 24 hours prior to installation
• Southwire’s No lube SIM technology has revolutionized the way wire is pulled without any lubricant, saving contractors both time and money
