Name: WATTS 3/4" X 3/4" Lead Free Brass Water Pressure Reducing Valve
SKU: CM9UY 06795528
Availability: InStock

Sale!

WATTS 3/4" X 3/4" Lead Free Brass Water Pressure Reducing Valve

Original price was: $89.00.Current price is: $62.30.

SKU: CM9UY 06795528 Categories: Plumbing, Valves Tag: WATTS

Experience the Best Quality
Your happiness, our mission.
Shop with Peace of Mind
Quality You Can Trust

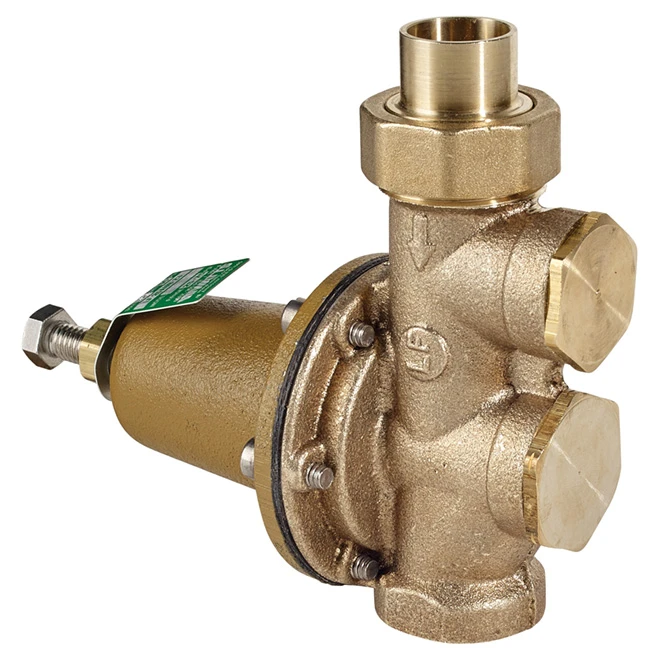

The Watts 3/4″ x 3/4″ lead free brass water pressure reducing valve features a replaceable seat module, sealed spring cage with stainless steel cage screws, a removable integral stainless steel strainer, a 3/4” solder union inlet port, a 3/4” NPT female outlet port and a bypass mechanism to control thermal expansion pressure. The valve has an adjustable 25 to 75 PSI operating pressure (standard 50 PSI setting), is suited for up to 300 PSI pressure applications and has a 33 to 160° F temperature range. The valve is ANSI A112.262 certified, conforms to military specification Ml-V-146B and is covered by a 1-year limited warranty against manufacturing defaults.

Solder union inlet
Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Replaceable seat module

Compatible Pipe Material	Multi-Purpose
Warranty	1-year
Complies with Federal Lead Guidelines	Yes
Inlet Diameter	3/4-in
Inlet Size in Inches	3/4-in
Inlet Thread Type	Copper sweat
Material	Copper
Maximum Pressure	300 PSI
Outlet Diameter	3/4-in
Outlet Thread Type	FNPT
Series Name	Lf25aub-z3
Type	Pressure reducing valve
